# Cache management

## Client cache overview

The **Client cache overview** page displays usage statistics for client's BranchCache and Delivery Optimization caches.

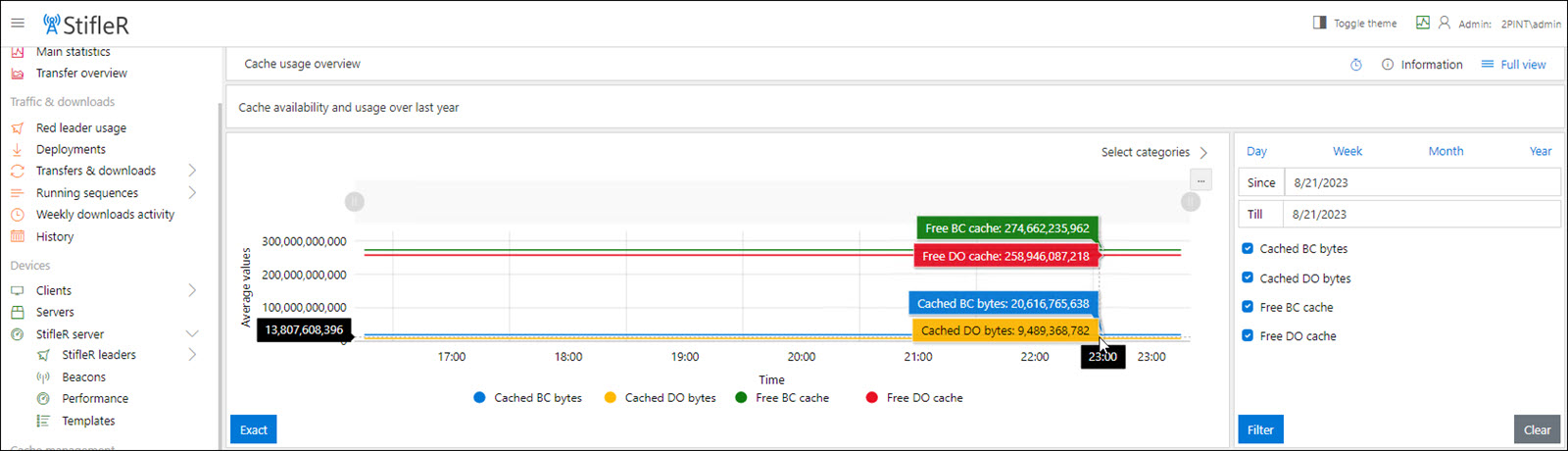

The line chart at the top of the screen can be customized by modifying the date range and  selecting / deselecting Cached BC bytes, Cached DO bytes, Free BC cache, and Free DO cache. Click the **Filter** button to modify the report.

<figure><img src="https://content.gitbook.com/content/SdKKJqJhW8GvhMBmgTTJ/blobs/B6XnXjQyaVBFfHcI8fwR/StifleRDashboard-2.10-ClientCacheOverview-1.jpg" alt=""><figcaption></figcaption></figure>

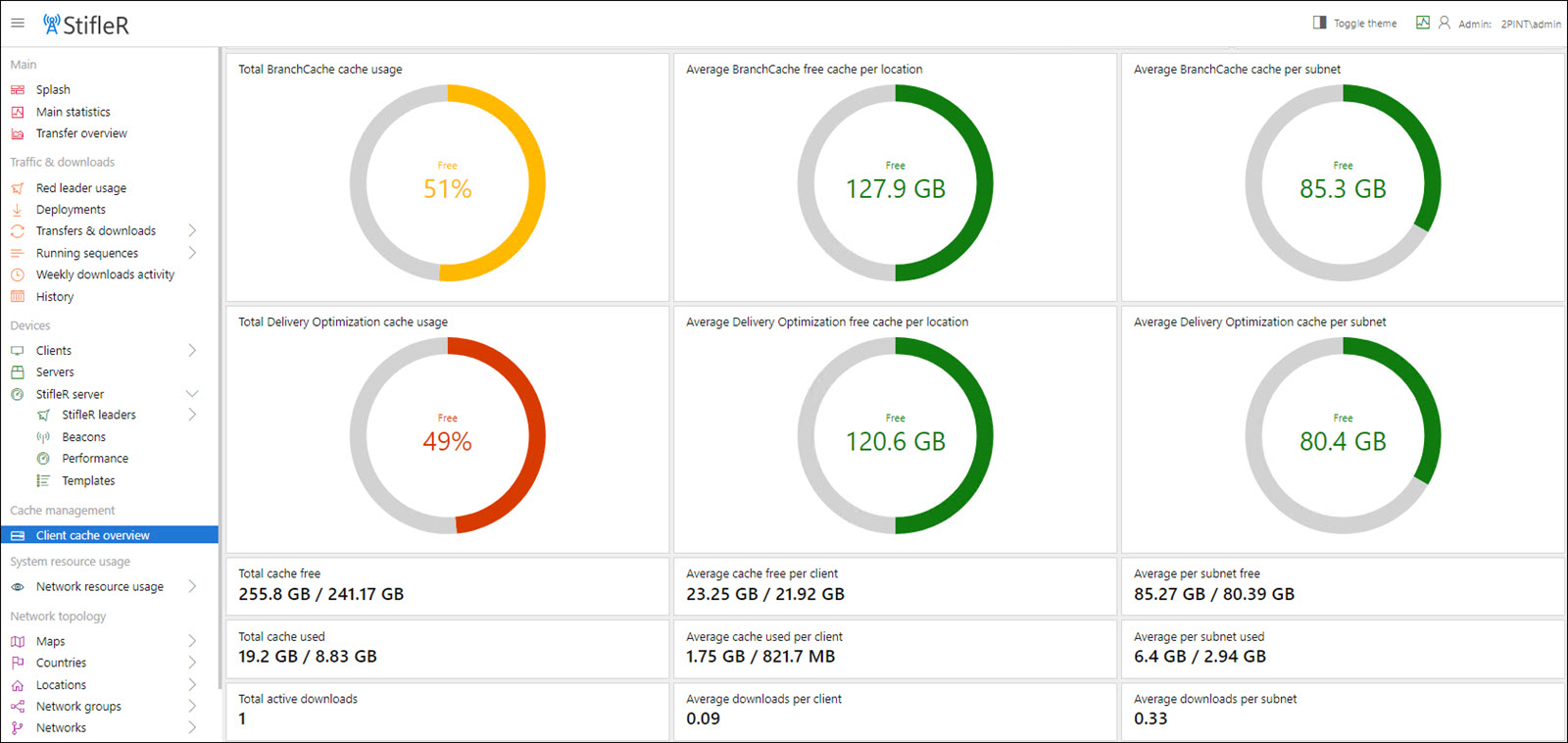

Towards the bottom of the page there are multiple data points displaying the percentage and ratios of Total Cache usage, average free cache per location and per subnet.&#x20;

<figure><img src="https://content.gitbook.com/content/SdKKJqJhW8GvhMBmgTTJ/blobs/Nj4kMAM3j0Bbtd7r1nFr/StifleRDashboard-2.10-ClientCacheOverview-2.jpg" alt=""><figcaption></figcaption></figure>
